KEL-QTE | Round pluggable cable entry plates
for cables with connectors, tool-free assembly / IP54
The KEL-QTE easily routes pre-terminated cables, multi-conductors, hoses or conduits without using any tools for assembly.
The KEL-QTE fits on cut-outs of 20 mm in diameter.
Part No.
43414
Specifications
Flame class
UL94-V0, self-extinguishing
Properties
halogen free, UV-resistant, silicone free
Temperaturbereich Range Max
100 C°
Temperaturbereich Range Min
-40 C°
Advantages and benefits
Quick assembly without tools
Routing of cables with and without connectors
Upon disassembly (e.g. maintenance) screwing and unscrewing of the cable entry frame is not necessary
Suitable for metric cut-outs
Product variants and sizes

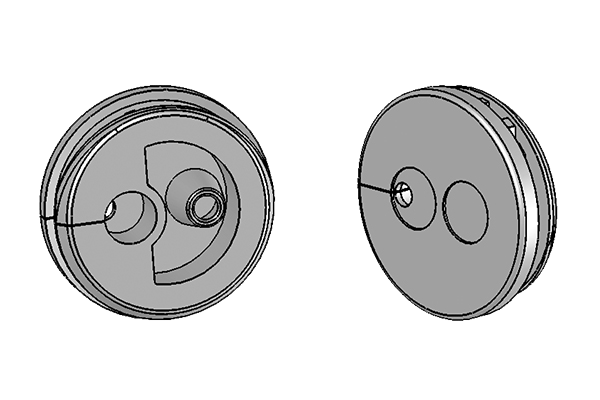

KEL-QTE 20|2.5
Number
43412
EAN
4251269309793
Packaging Unit
Unknown
Mounting options
Snap-in
KEL-QTE 20|5
Number
43415
EAN
4251269309823
Packaging Unit
Unknown
Mounting options
Snap-in
KEL-QTE 20|4
Number
43414
EAN
4251269309816
Packaging Unit
Unknown
Mounting options
Snap-in

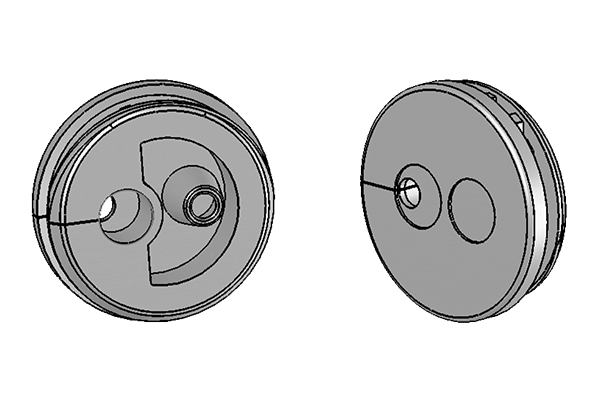

KEL-QTE 20|3
Number
43413
EAN
4251269309809
Packaging Unit
Unknown
Mounting options
Snap-in
The KEL-QTE easily routes pre-terminated cables, multi-conductors, hoses or conduits without using any tools for assembly.
The KEL-QTE fits on cut-outs of 20 mm in diameter.
